ICEWAVE Bingsu & Snowflake Ice Machine (IW-04)
Make Bingsu and Snowflake Ice in About 1 Minute.
The ICEWAVE IW-04 / (WS-003) household countertop snowflake ice machine is designed for Korean-style bingsu, Taiwanese snow ice, and other frozen desserts. Its drum roller turns a well-mixed liquid base into soft snowflake-shaped or filamentous ribbon ice in about 1 minute. Use water, milk, juice, coffee, or a properly adjusted syrup or yogurt base - no pre-frozen ice blocks or manual ice crushing required.

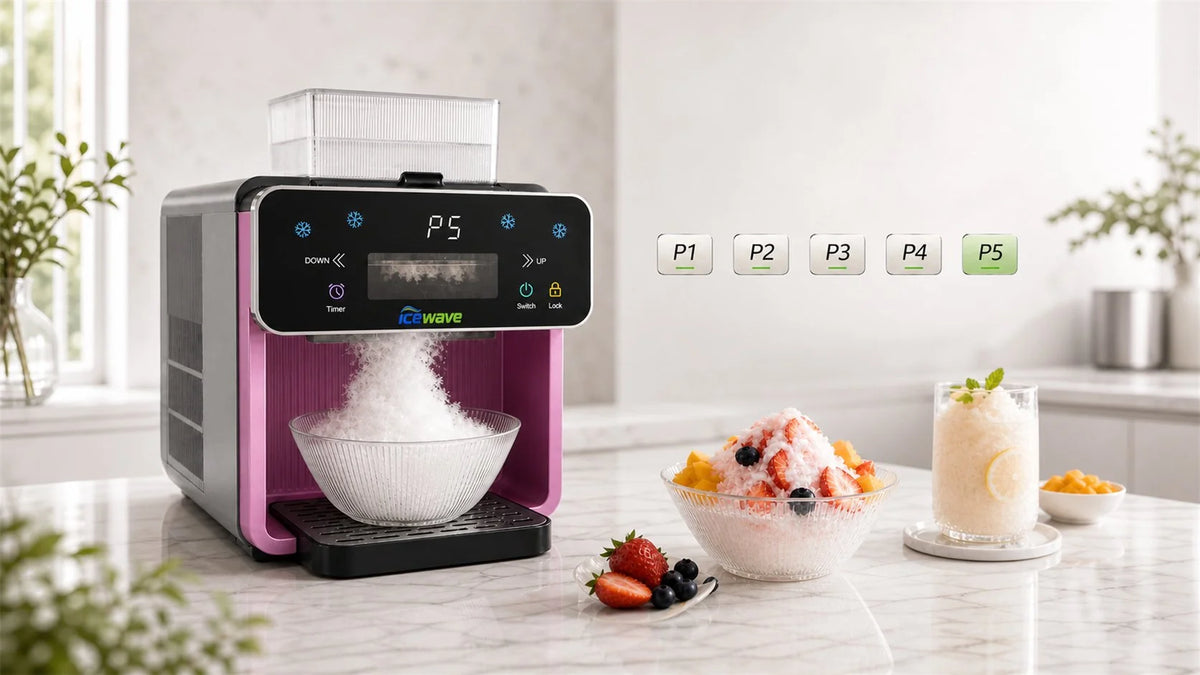

- ◆ Snow Ice in About 1 Minute: After pre-cooling begins, the IW-04 starts producing fine snowflake or ribbon ice in about 1 minute. Choose P1 to P5 to adjust production speed and texture for the liquid base.
- ◆ Child Lock for Household Use: Hold the Child Lock control for 3 seconds to lock or unlock the panel. Adult supervision is still required when children are nearby.
- ◆ 0-24 Hour Timer & Low-Material Protection: Set a delayed start or automatic shut-off from 0 to 24 hours. The low-material alert can stop operation automatically if the tank is not refilled.
- ◆ Automatic Cleaning Cycle: Remove and rinse the liquid tank, add warm water below 122°F (50°C) to the drainage pool, close the cover, and press Clean. The cycle finishes automatically with a beep.
- ◆ Compact 800 ml Countertop Design: The 14.76" × 9.25" × 10.04" footprint and 19.4 lb body fit home kitchens, dessert counters, and party serving areas without requiring pre-frozen ice blocks.
- ◆ Drum Roller & Forced-Air Cooling: A 150 W refrigeration system freezes the prepared liquid on the drum roller, while the distributor forms snowflake-shaped or filamentous ice for immediate serving.
- ◆ R290 Refrigeration System: The IW-04 uses R290 refrigerant. Keep the machine upright, well ventilated, and away from flames; refrigeration service must be performed by qualified personnel.
Technical Specifications
| Model | IW-04 / (WS-003) |
| Product Category | Household snowflake ice maker / bingsu machine |
| Ice Types | Snowflake-shaped / Filamentous ribbon ice |
| Speed Settings | 5 Adjustable Levels (P1-P5) |
| Production Start | About 1 minute after pre-cooling begins |
| Material Tank Capacity | 800 ml maximum |
| Evaporator Type | Drum roller |
| Cooling Mode | Forced-air cooling |
| Timer & Safety | 0-24h Timer, Child Lock, Low-Material Auto-Stop |
| Cleaning Function | Automatic cleaning cycle |
| Operating Conditions | Ambient below 32°C (89°F); material at or below 50°C (122°F) |
| Rated Power | 150 W |
| Voltage | AC 110-120V or 220-240V, 50/60Hz (market-specific SKU; check nameplate) |
| Refrigerant | R290 |
| Product Dimensions | 375 × 235 × 255 mm (14.76" × 9.25" × 10.04") |
| Net Weight | 8.8 kg (19.4 lbs) |
Compare ICEWAVE Ice Machines
Need a different type of ice? Explore the ICEWAVE IW-03 3-in-1 ice maker and water dispenser for ice cubes, slush, and chilled water, choose the ICEWAVE IW-01 countertop bullet ice maker for a compact ice-only option, or compare the ICEWAVE IW-02 slushie machine for frozen drinks.
1-Year Limited Warranty
Entire unit covered for 1 year from delivery.
Free U.S. Shipping
Free standard shipping to eligible U.S. addresses.
30-Day Return Requests
Request a return within 30 days of delivery.
Secure Payments
Shop confidently with secure payment.
Precision Cooling. Fluffy Results.

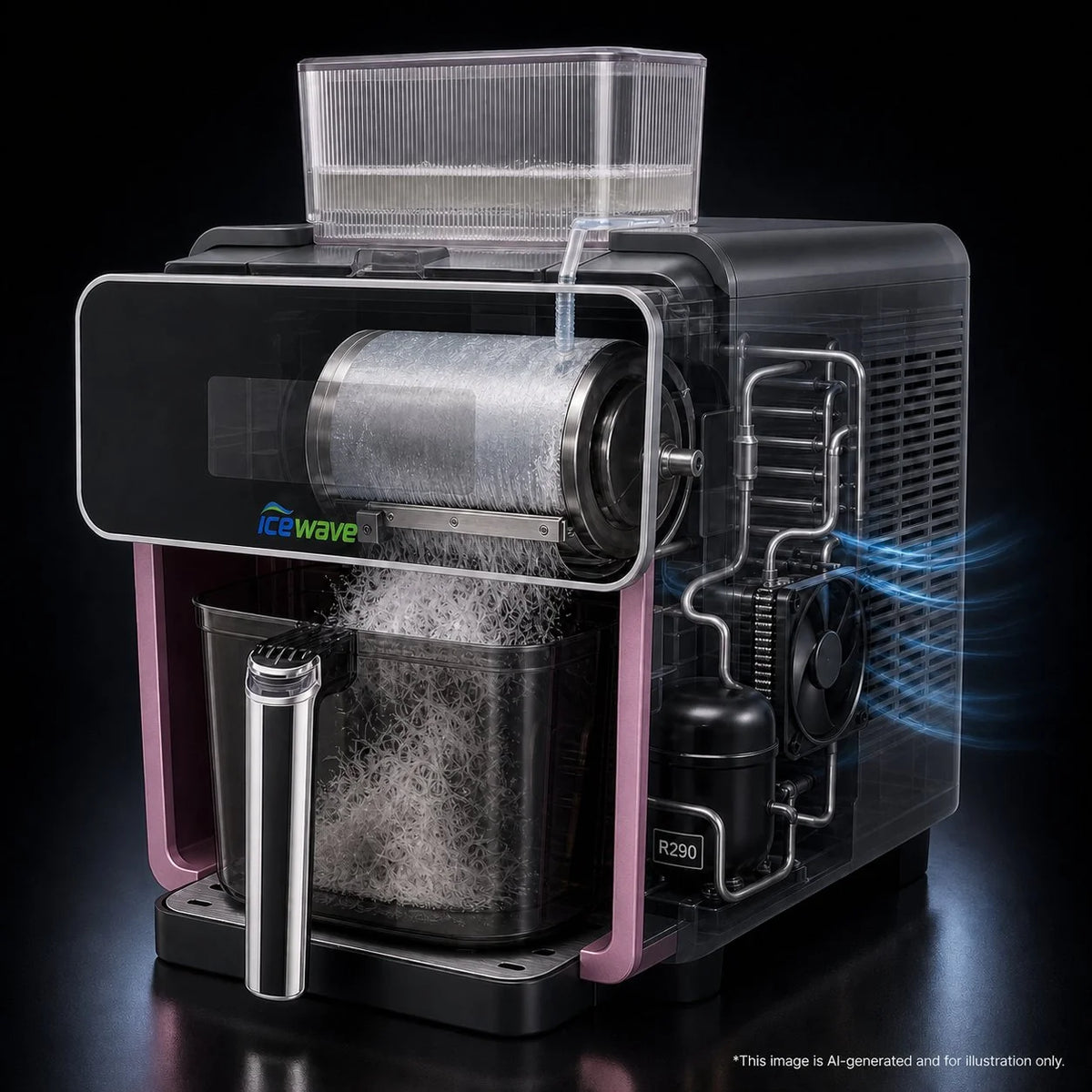

Inside the IW-04, an efficient drum roller evaporator and forced-air cooling system work together to transform liquids into fine, fluffy snow ice—fast, consistently, and with less effort.
- 150W Low-Power Performance
- R290 Refrigerant
- One-Touch Self-Cleaning
IW-04 at a glance.
- Model
- IW-04 / (WS-003)
- Product dimensions
- 375*235*255mm(14.76″ × 9.25″ × 10.04″)
- Net weight
- 8.8KG(19.4 lbs)
- Ice type
- Sonwflake-shaped or filamentous
- Voltage
- AC 110–120V / 220–240V, 50/60Hz
- Rated Power
- 150W
- Cooling mode
- Forcd-air cooling
- Evaporator
- Drum roller
- Environment-friendly Refrigerant
- R290
*Cycle time varies with the selected ice size and ambient conditions. Check the rating label for the voltage of your market-specific SKU.
Questions, answered
Clear answers based on the IW-04 product manual and verified product details.
Q1: What type of ice does this machine make?
It makes soft, fluffy snow-like or shaved ice — not traditional hard ice cubes. Perfect for snow cones, slushies, cocktails, and dessert toppings. You can also adjust the texture by changing the liquid ingredients (e.g., water/milk gives snow-like ice; syrup/honey gives shaved ice).
Q2: What liquid can I use?
You can use water, milk, juice, coffee, syrup, yogurt, honey, or any beverage with a temperature below 122°F (50°C). The max capacity of the liquid tank is 800ml. For thicker liquids like yogurt or honey, add some water to adjust viscosity for best results.
Q3: How long does it take to make ice?
The machine starts producing snow ice within about 1 minute after you press the cooling button. The speed is adjustable from P1 to P5 using the "+" and "−" buttons — higher settings produce ice faster.
Q4: How do I clean the machine?
Remove the liquid tank and rinse it with clean water.
Pour warm water (below 122°F / 50°C) into the drip tray.
Close the top lid and press the "Clean" button — it runs a 5-minute auto-clean cycle.
After it stops, rinse the drum roller with warm water again. A cleaning brush is included.
Q5: Can I set a timer for auto start/stop?
Yes! Short press the child lock button to enter timer mode, then use "+" and "−" to set a delay start (0–24 hours) or auto shut-off (0–24 hours). The machine will beep once to confirm.
Q6: Can I use this outdoors?
This appliance is intended for use in a well-ventilated area. Keep it away from fire sources and make sure the air outlet is unobstructed, with more than 8 inches (20 cm) of clearance from surrounding objects.
Q7: Still have questions?
Email us at support@icewavetech.com — we’re happy to help!
